USA BCI:: 1500F Digital Fiber Optic 250C Short Haul Analog Video
Transport System with SDV or HDTV Digital Video with Alarm/Monitoring
(BCI = Broadata Communications Inc.)
Features
Simultaneously Transport 250C Short
Haul Analog and SMPTE Digital Video
Cost Effective Solution for Simultaneous
Analog and Digital Video Feeds
Reliable Transmission Over Multimode
or Singlemode Fiber
1 Fiber Solution
Applications
Remote Studio to Transmitter Link
Broadcast Analog/Digital Video
Distribution
Pre-production and Post-production
Mixed Analog/Digital Video Links
Introdution

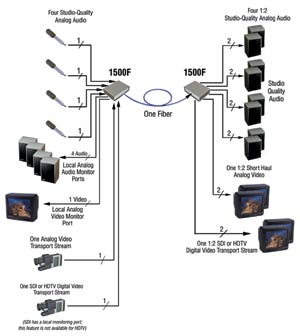

The 1500F Series is a high performance, yet affordable, Fiber Optic 250C Short Haul
Analog Video Transport System with SDV/HDTV Digital Video. The standard 1500F
system is designed to transport one broadcast quality 250C analog video channel, four
professional grade analog audio channels, and/or one RS-232 (or RS-422) channel, as
well as one SMPTE-259M (SDV) or SMPTE-292M (HDTV) serial digital video signal,
over long distance through either singlemode or multimode fiber. Many versions of
optical transmitter and receiver combinations are available to address different distance
requirements.
Monitoring ports are available for analog video and audio channels. The video
monitoring port utilizes a 75 Ohm BNC termination while the 4 audio monitoring ports
utilize 3 position, 600 Ohm terminal block connections. Other monitoring functions
include LED indicators for video loss, optical link loss, power loss, and audio channel
activity.
Due to the use of advanced digital fiber optic transmission technology, the quality of
analog video, audio and data transmission is superior to the analog counterparts. No
user adjustments are required in the 1500F system, enabling quick setup and trouble-free
operation.

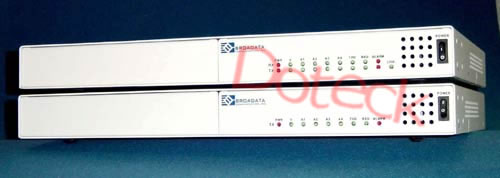

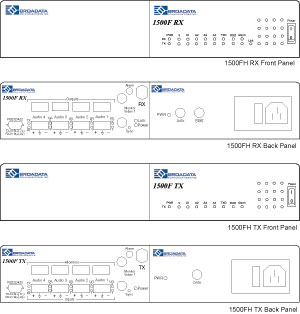

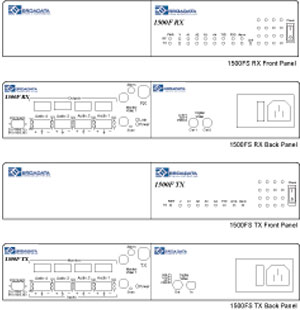

The 1500F comes in a rugged, standalone, rackmountable unit. Panel connectors are
provided for analog baseband video (BNC connector), analog stereo audio (terminal
block), RS-232/RS-422 data (DB9 connector), SDV/HDTV digital video (BNC
connector), and fiber connection (FC-type for the singlemode version or ST-type for the
multimode version). The 1500F can be easily monitored by front panel LED indicators
for power, optical link, and channel activity.
The 1500F design is capable of addressing a variety of non-standard configurations.
Contact us to discuss your custom, OEM/private brand and high volume requirements.
